Chapter 7: Technologies

plug 7-3: I/O Control
7-3-10: SVG Control		 plug

SVG (Scalable Vector Graphics) is a format for web browsers. For more information on writing SVG, see Section 3-9-3.

SVG options are controlled with the SVG Preferences (in menu File / Preferences..., "I/O" section, "SVG" tab). This dialog has two controls:
  • "Scale Factor" specifies how Electric units are scaled into SVG units. The default (1) makes a SVG file that uses exact Electric coordinates.
  • "Margin" is the number of SVG units that are added to the top and left.

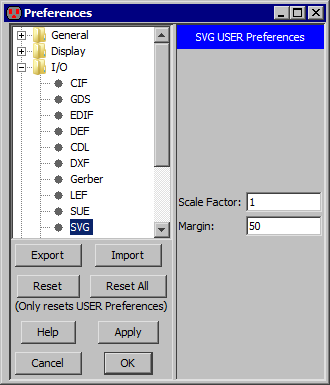

Figure 7.14
