7-3-6: CDL Control |
![]() |
CDL (Circuit Description Language) is almost identical to Spice format,
and is used as a netlist interchange method.

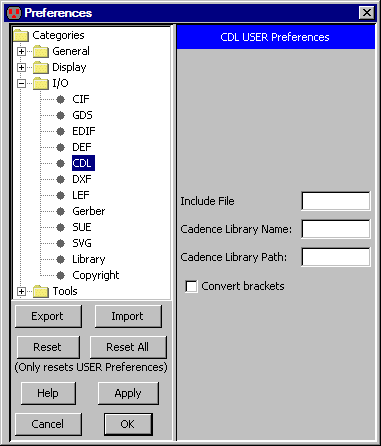

CDL options are controlled with the CDL Preferences
(in menu File / Preferences..., "I/O" section, "CDL" tab).
Additional CDL options that are common to Spice options can be found in the
Spice/CDL Preferences
(in menu File / Preferences..., "Tools" section, "Spice/CDL" tab).
This dialog controls the library name and path information that is written when generating a netlist. You can specify an Include file which will be inserted at the top of the netlist. Also, you can choose to convert square-bracket characters (if your CDL cannot handle indexed signal names). | ![]() |
![]() |
